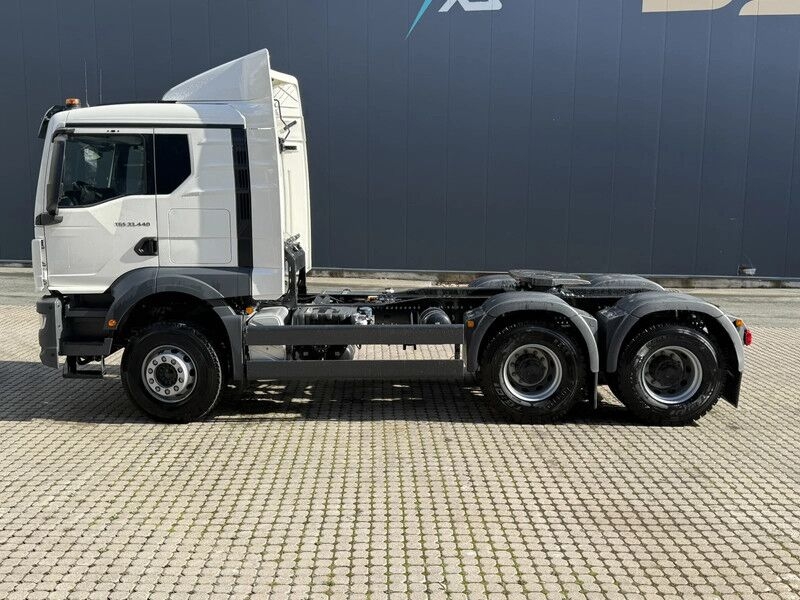

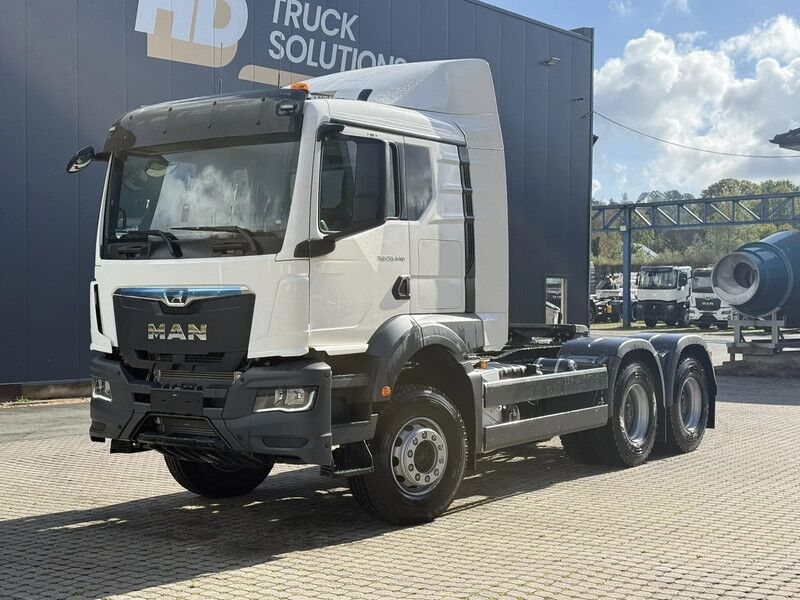

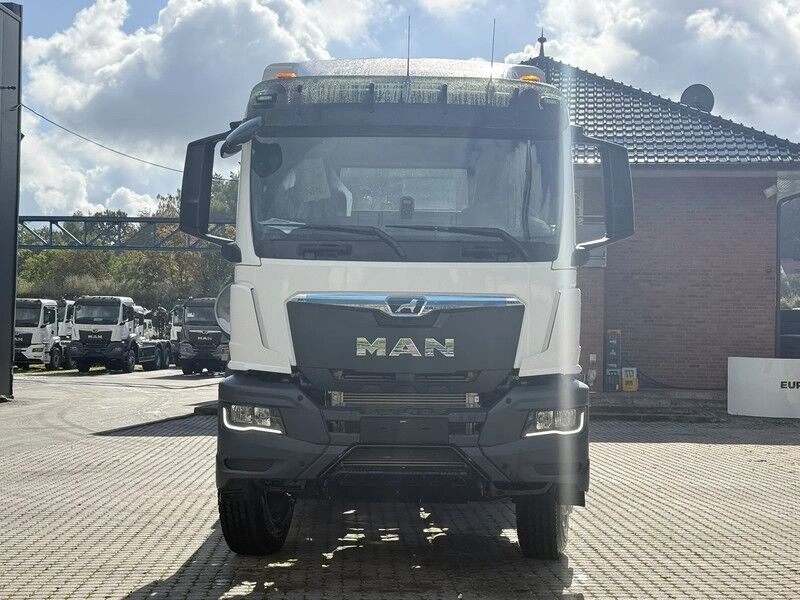

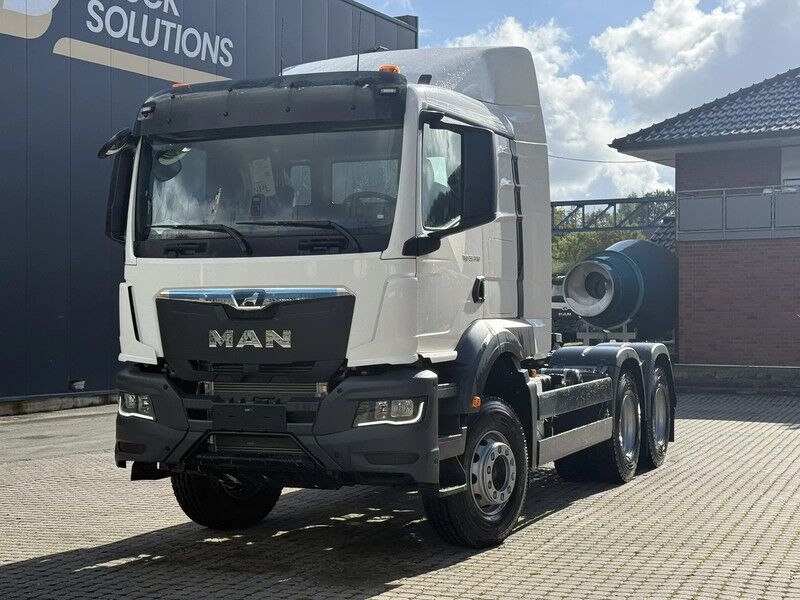

MAN TGS 33.440 MAN TGS 33.440 BB 6X4 Euro 2 Heavy-Duty Tractor Unit

**Additional options and accessories** * Aluminium fuel tank * Climate control * Differential Lock **Remarks** MAN TGS 33.440 6x4 BB – Heavy-Duty Tractor Unit Vehicle data: MAN TGS 33.440 6x4 BB CH New vehicle Production year: 2026 Left-hand drive 6x4 drive configuration Euro 2 emission standard Permissible gross vehicle weight: 28,000 kg Permissible gross train weight: 44,000 kg Technical gross train weight: up to 59,000 kg Main wheelbase: 3,600 mm Distance between rear axles: 1,400 mm Rear frame overhang: 1,500 mm Straight rear frame end Heavy-duty N3G vehicle classification Cab colour: Pure White RAL 9010 Engine and transmission: MAN D2676 LFBW 6-cylinder diesel engine Power: 324 kW / 440 hp Maximum torque: 2,250 Nm MAN TipMatic 12.28 OD automated transmission TipMatic Efficiency driving programme TipMatic Manoeuvre manoeuvring mode MAN Idle Speed Driving MAN EVBec high-performance engine brake 430 mm single-disc dry clutch Gearbox prepared for increased overrun operation Heated fuel filter Heated fuel pre-filter with water separator and water sensor Digital engine oil-level display Lower radiator protection Antifreeze protection down to -32 °C PTO and body preparation: Engine-dependent PTO preparation Gearbox-dependent PTO, type NH/4c PTO ratio: 1.14 PTO suitable for operation while driving PTO designed for short-time operation under 60 minutes Preparation for engine start/stop control under the front panel Application Fit interface for digital data exchange FMS vehicle data interface Preparation for rear tipper and body installation Final cross member with 160 x 100 mm hole pattern Preparation for trailer coupling Two-line trailer brake connection 24 V, 15-pin trailer socket ABS trailer socket Axles and suspension: Front axle: 9,200 kg technical capacity First rear axle: 13,000 kg planetary drive-through axle Second rear axle: 13,000 kg planetary axle Differential locks on both driven rear axles Axle ratio: i = 4.00 Full leaf-spring suspension Two-leaf parabolic suspension on the front axle Three-leaf parabolic suspension on both rear axles Shock absorbers on all axles Stabiliser bars on all axles Twin tyres on both rear axles Spare wheel included Wheels and tyres: Front tyres: 315/80 R22.5 Rear tyres: 315/80 R22.5 Steel rims, 9.00 x 22.5 Suitable for road and off-road operation Wheel nut cover rings on the front axle Brake system: Electronic Braking System EBS Anti-lock Braking System ABS Full brake assistant Disc brakes on the front axle Drum brakes on both rear axles Pneumatic additional parking brake on the front axle Spring-loaded parking brake on the rear axles MAN EasyStart hill-start and roll-back prevention Heated air dryer Electronically controlled compressed-air treatment Automatic emergency-braking warning signal TN cab and comfort equipment: TN cab: narrow, long and normal height Mechanically operated tilting roof Adjustable roof spoiler Folding side air deflectors Air-suspended comfort driver’s seat Driver’s seat with armrests Passenger seat with integrated storage box One lower bunk with slatted support 90 mm mattress **More information** Bodywork: **Standard tractor** Year of manufacture: **2026** Price: **On request**
